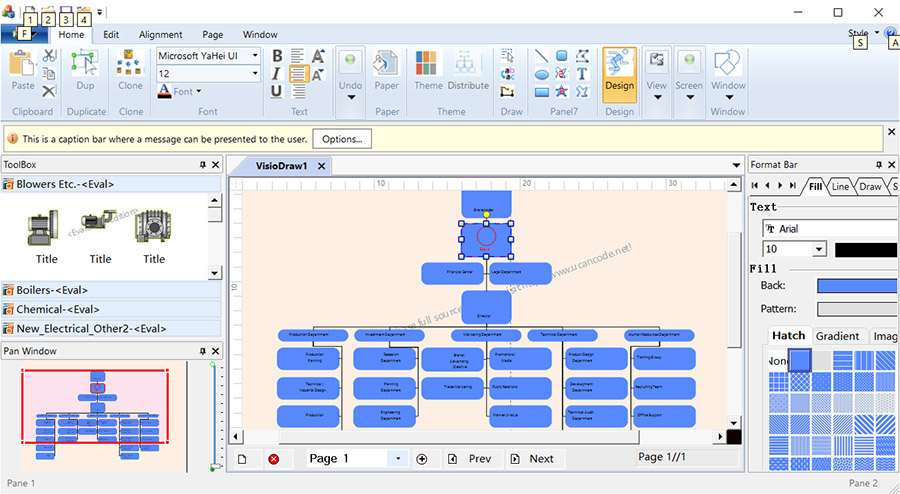

More... VisioApp Sample



Visual C++ .NET Drawing Control, Visual C++ .NET Drawing Components, Visual C++ .NET Diagram Components. Here

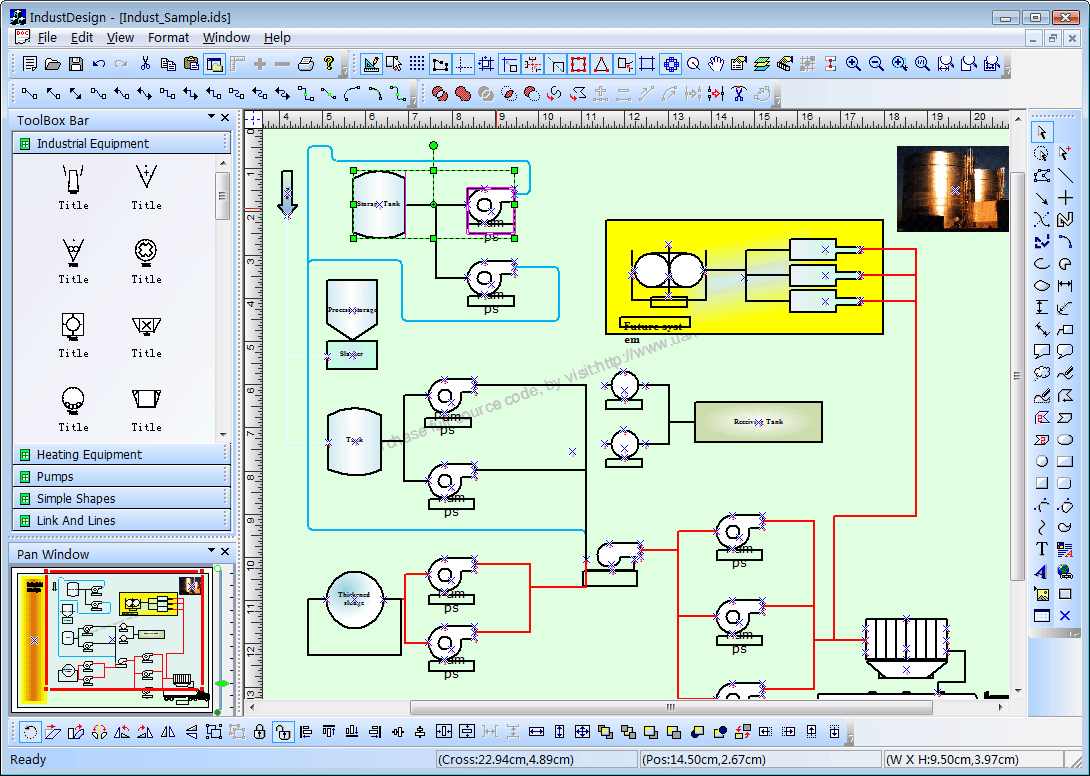

IndustDesign application.



Powerful, flexible, and easy to use Diagram Components.
Powerful and flexible enough to create diagrams exactly the way you want them to appear. So easy to use that you will be able to prototype your application in just a few minutes.

Feature rich.
With features such as automatic layout, multiple layers, collapsible sub-graphs, snap-to connection points, XML, SVG, and more, E-XD++ Have the power and flexibility you need to create sophisticated diagrams, quickly and easily. Events such as click, double-click, hover, select, rubber-band select, copy, delete, resize and move are supported. Operations such as drag-and-drop, unlimited undo/redo, and clipboard operations are common and complex, and are expected by today's sophisticated users. it full supports importing ArcGis, SVG and DXF File format.

Performance and Scalability.
UCanCode E-XD++ Capable of handling many thousands of nodes and edges, up to hundreds of thousands depending upon the complexity of the nodes you wish to draw and the operations you wish to allow. Our graphical classes are extremely lightweight objects enabling outstanding performance.

Save Time and Money and gain Reliability.
A diagram is worth 1,000 words, and E-XD++ is shipped with more than 500,000 lines of well designed and well tested code! It is used by hundreds of the world's most quality conscious companies. It will saves you thousands of hours of complex coding and years of maintenance.

News:

1 UCanCode Advance E-XD++ CAD Drawing and Printing Solution Source Code Solution for C/C++, .NET V2023 is released!

2 UCanCode Advance E-XD++ HMI & SCADA Source Code Solution for C/C++, .NET V2023 is released!

3 UCanCode Advance E-XD++ GIS SVG Drawing and Printing Solution Source Code Solution for C/C++, .NET V2023 is released!
