VC++ Article: UnrealizeObject and SetBrushOrg or GetSystemMetrics with Pattern Brush




Code Snippet

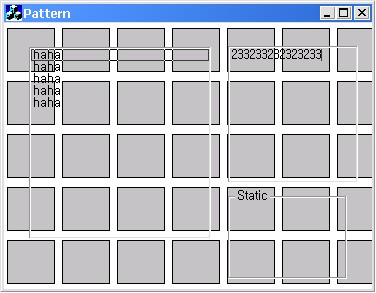

This article shows how to use a pattern brush to give your controls a similar look and feel.

When you use a brush, you can specify the origin of the brush. So, if all your controls use the same brush, your controls have same feature. If you handle the OnCtlColor() and return a pattern brush then you can do this. This is very simple method.

I used code similar to the following functions in my source code.

  • UnrealizeObject() : The UnrealizeObject function resets the origin of a brush or resets a logical palette.
  • CDC::SetBrushOrg() : This method specifies the origin that the GDI assigns to the next brush that the application selects for the device context.

The Main Function

Collapse Copy Code
HBRUSH CPatternDlg::OnCtlColor(CDC* pDC, CWnd* pWnd, UINT nCtlColor)
{
    HBRUSH hbr = CDialog::OnCtlColor(pDC, pWnd, nCtlColor);

    CPoint pt(0,0);

    if (this != pWnd)
    {
        CRect rc;
        pWnd->GetWindowRect(&rc);
        ScreenToClient(&rc);
        pt.x = -(rc.left + GetSystemMetrics(SM_CXDLGFRAME) - 1) % 55;
        pt.y = -(rc.top + GetSystemMetrics(SM_CYDLGFRAME) - 1)% 53;

    }

    // Set brushOrg
    // This is very important!!
    brush.UnrealizeObject();
    pDC->SetBrushOrg(pt);

    // return new skin-brush!
    return (HBRUSH)brush;
}
